SPECIFICATIONS

Brand Name: DOKIO

Certification: CE

Flexible Solar Panel: Yes

Foldable Solar Panel: Yes

Hign-concerned Chemical: None

Material: Monocrystalline Silicon

Maximum Power Current (Imp): 6.1A

Maximum Power Voltage(Vmp): 18.00V

Maximum Power(Pmax): 100W±3%

Maximum System Voltage: DC1000V

Model Number: FFSP-97M

Nominal Capacity: None

Nominal Operating Cell Temp.(NOCT): -45 to 80℃

Number of Cells: 36

Number of Panels: 1

Open-Circuit Voltage (Voc): 20.5V

Origin: Mainland China

Short-Circuit Current (Isc): 6.35A

Size: 48*66*1.2cm

Type: Solar Panel

is_customized: Yes

Dear customer, due to product upgrade,the size and weight of the product you receive may be different.



Product Description:





Model:FFSP-97M

Material:Monocrystalline silicon

Maximum Power(Pmax):97W±3%

Maximum Power Voltage(Vmp):18.00V

Maximum Power Current (Imp):6.1A

Open-Circuit Voltage (Voc):20.5V

Short-Circuit Current (Isc):6.35A

Nominal Operating Cell Temp.(NOCT):-45 to 80℃

Maximum System Voltage: DC1000V

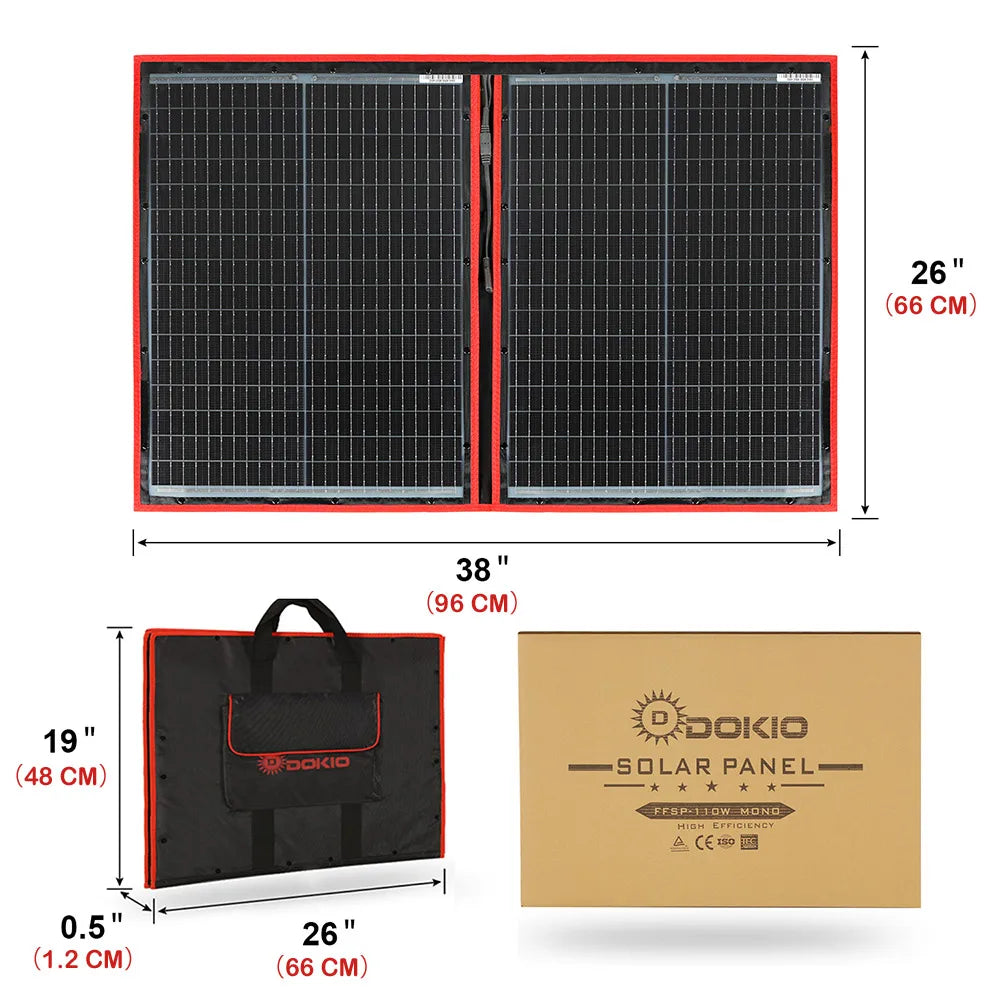

Foldable Dimension:48*66*1.2 cm

Expansion Dimension:96*66*0.6 cm

Net Weight: 2.4 kg

Package Weight:3.4kg

Package Size:77*50.5*4 cm

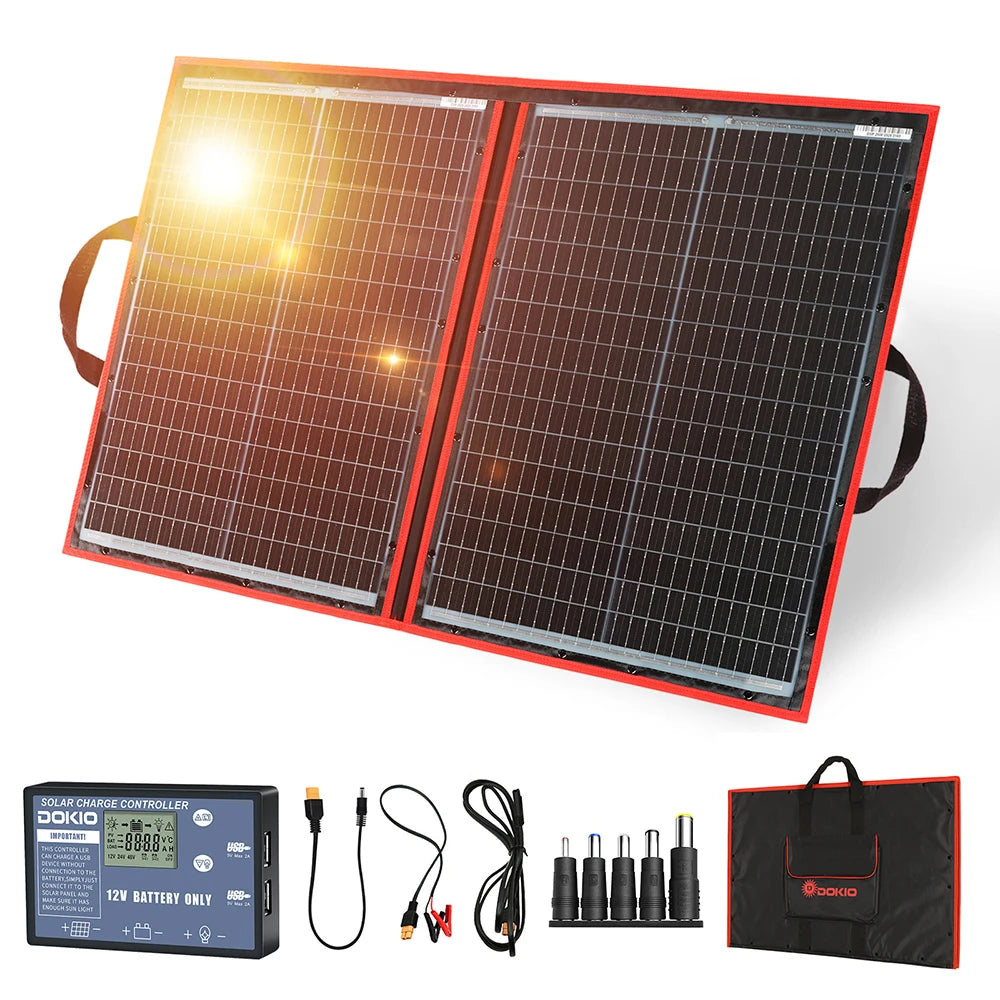

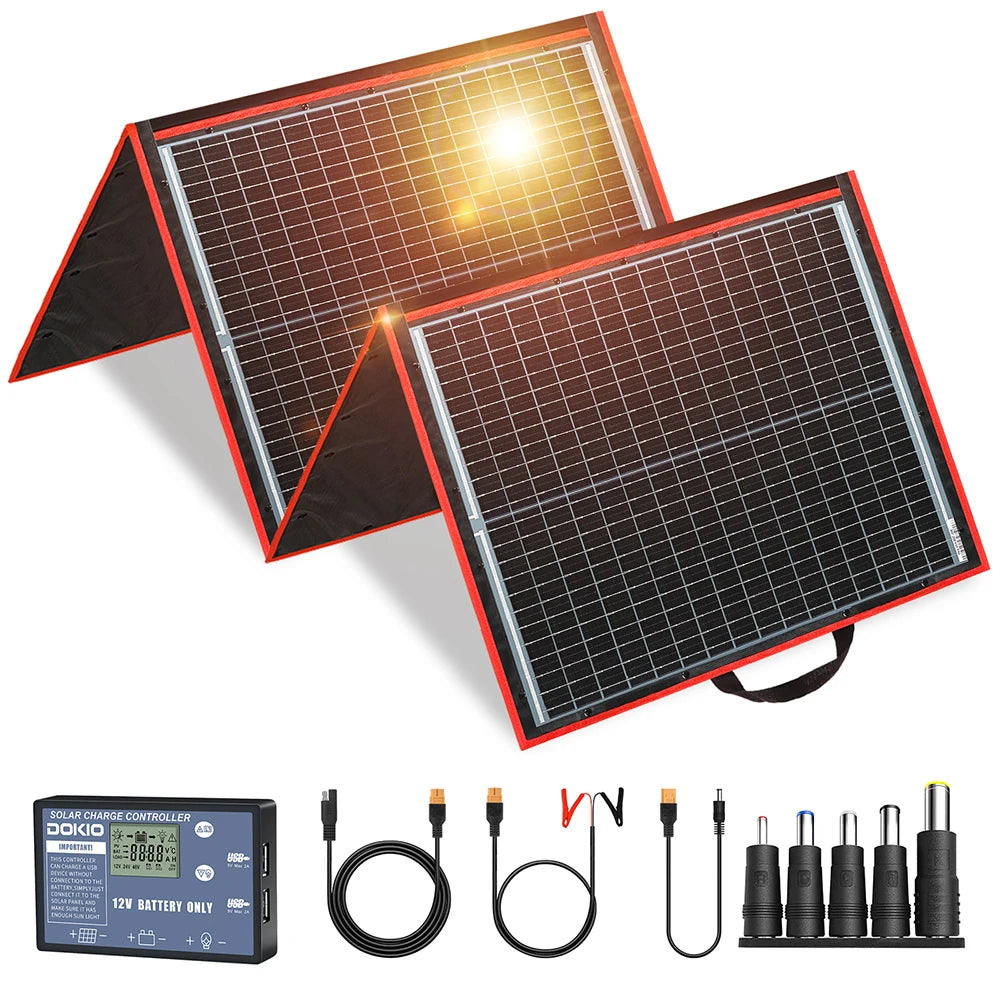

Package List:

1*97W Flexible Foldble Solar Panel，

1*3M wire,

1*10A 12Vcontroller,

1*English User Manual









Model:FFSP-150M

Material:Monocrystalline silicon

Maximum Power(Pmax): 150W±3%

Maximum Power Voltage(Vmp):18.00V

Maximum Power Current (Imp):8.89A

Open-Circuit Voltage (Voc): 22.50V

Short-Circuit Current (Isc):9.14A

Nominal Operating Cell Temp.(NOCT):-45 to 80℃

Maximum System Voltage: DC1000V

Foldable Dimension:53*49*2.8 cm

Expansion Dimension:195*53*0.6 cm/77*21*0.2 inch

Net Weight:3.3kg

Package Weight:4.5kg

Package Size: 63*50.5*4 cm

Package List:

1*150W Flexible Foldble Solar Panel，

1*3M wire,

1*10A 12Vcontroller,

1*English User Manual

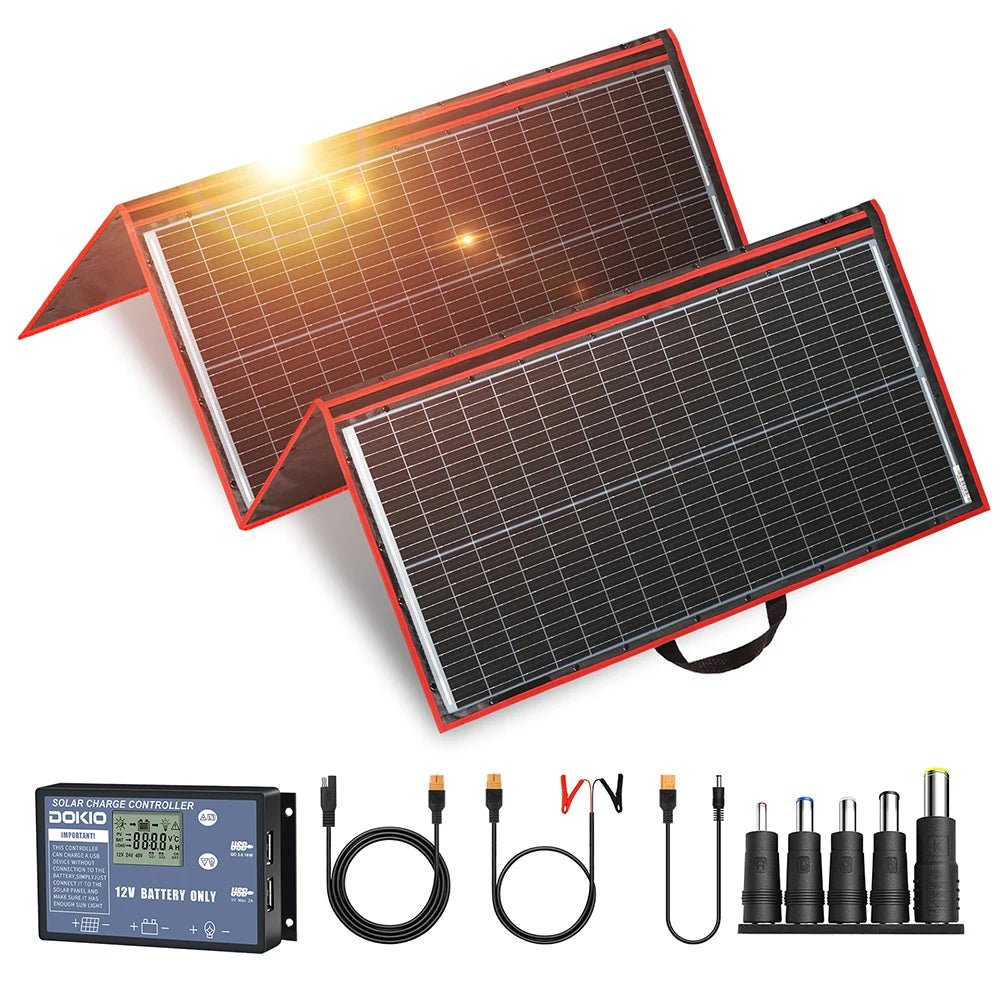

Model:FFSP-195M

Material:Monocrystalline silicon

Maximum Power(Pmax): 195W±3%

Maximum Power Voltage(Vmp):18.00V

Maximum Power Current (Imp):11.12A

Open-Circuit Voltage (Voc): 20.5V

Short-Circuit Current (Isc):11.36A

Nominal Operating Cell Temp.(NOCT):-45 to 80℃

Maximum System Voltage: DC1000V

Foldable Dimension:49*67*2.8 cm

Expansion Dimension:195*67*0.6 cm/77*26*0.2 inch

Net Weight:4.4kg

Package Weight:5.6kg

Package Size:77*50.5*4 cm

Package List:

1*195W Flexible Foldble Solar Panel

1*3M wire,

1*20A 12Vcontroller,

A total of 4M long cable. With alligator clips，

1*English User Manual

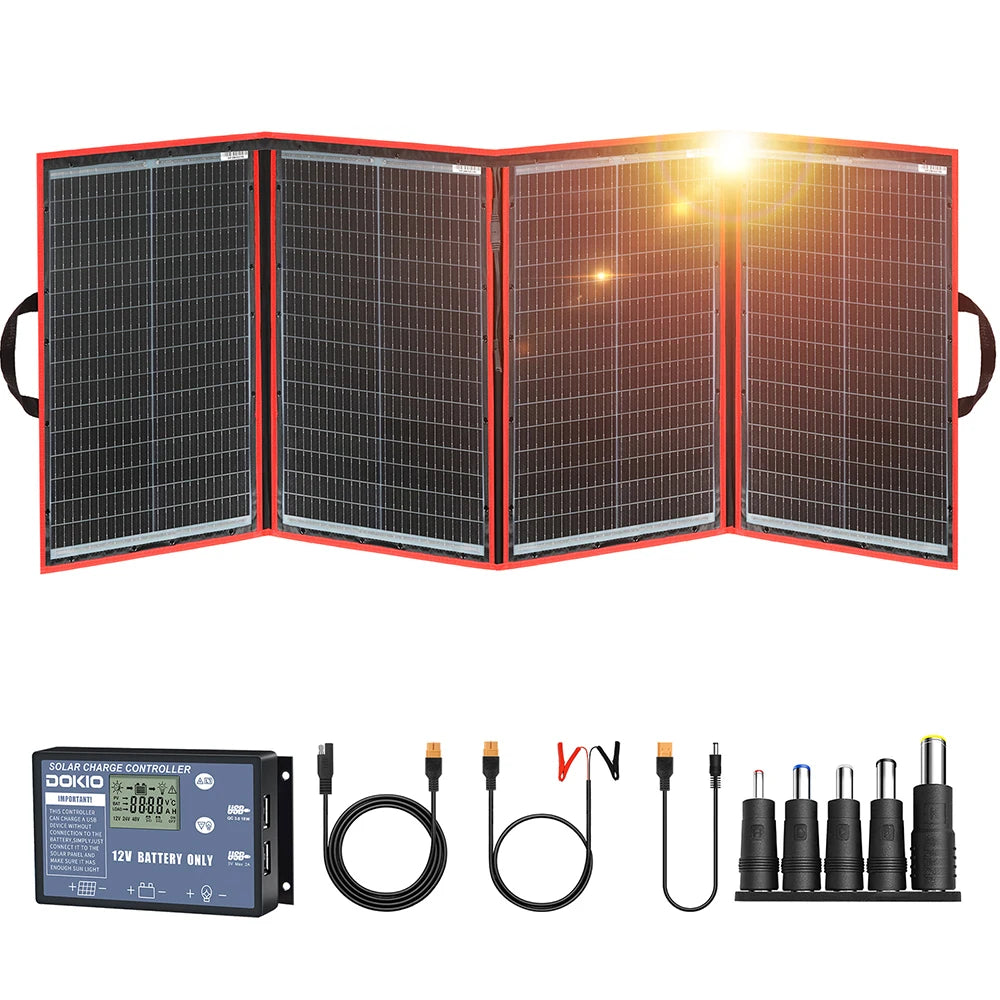

Model:FFSP-295M

Material:Monocrystalline silicon

Maximum Power(Pmax): 295W±3%

Maximum Power Voltage(Vmp):18.00V

Maximum Power Current (Imp):16.67A

Open-Circuit Voltage (Voc): 20.50V

Short-Circuit Current (Isc):16.92A

Nominal Operating Cell Temp.(NOCT):-45 to 80℃

Maximum System Voltage: DC1000V

Foldable Dimension:49*95*2.8 cm

Expansion Dimension:196*95*0.6 cm/77.2*37*0.2 inch

Net Weight:6.9kg

Package Weight:8.1kg

Package Size:105*50.5*4 cm

Package List:

1*295W Flexible Foldble Panel

A total of 4M long cable. With alligator clips，

1*20A 12Vcontroller

1*English User Manual



(The above data is based on the laboratory standard test environment)

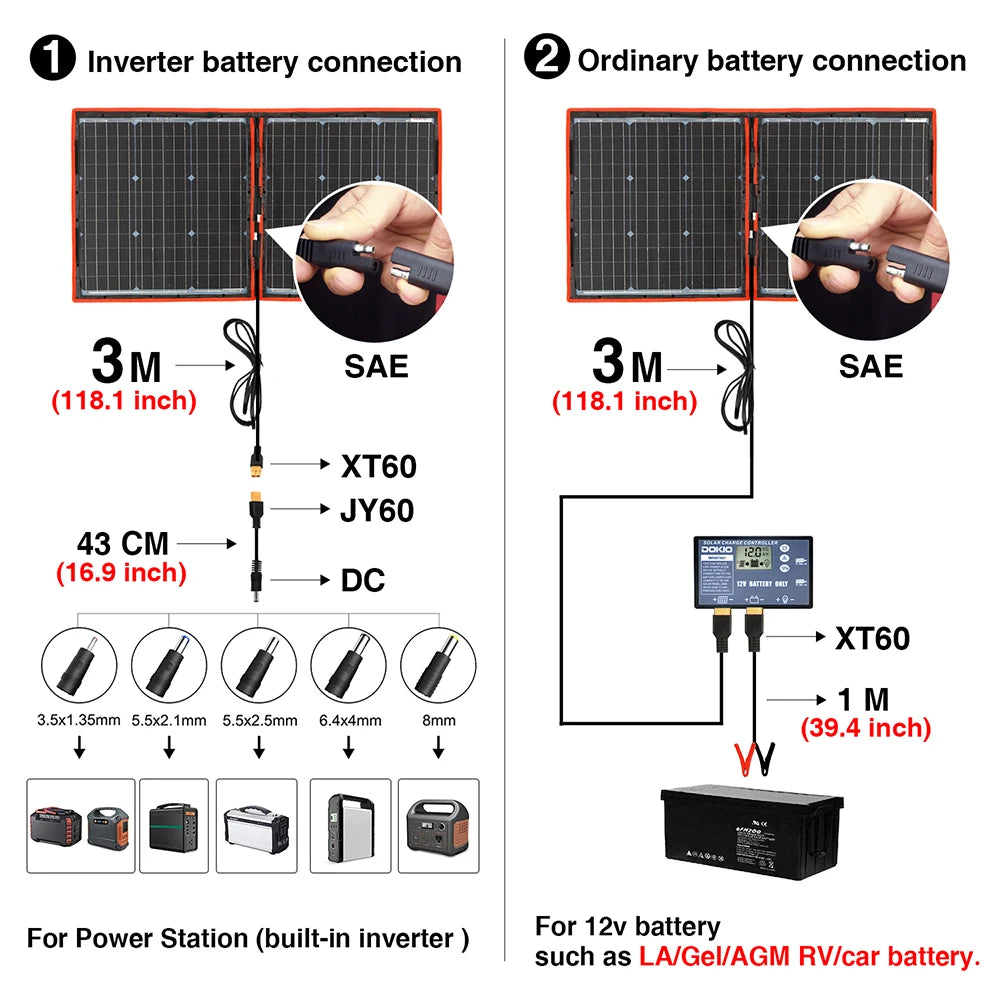

For field connections,use minimun No.12AWG copper wires insulated for a minimum 90℃



Standard Test Conditions:



AM=1.5 IRRADIANCE=1000W/m2 Temp.=25℃

(The size is manually measured and there is a certain error.）

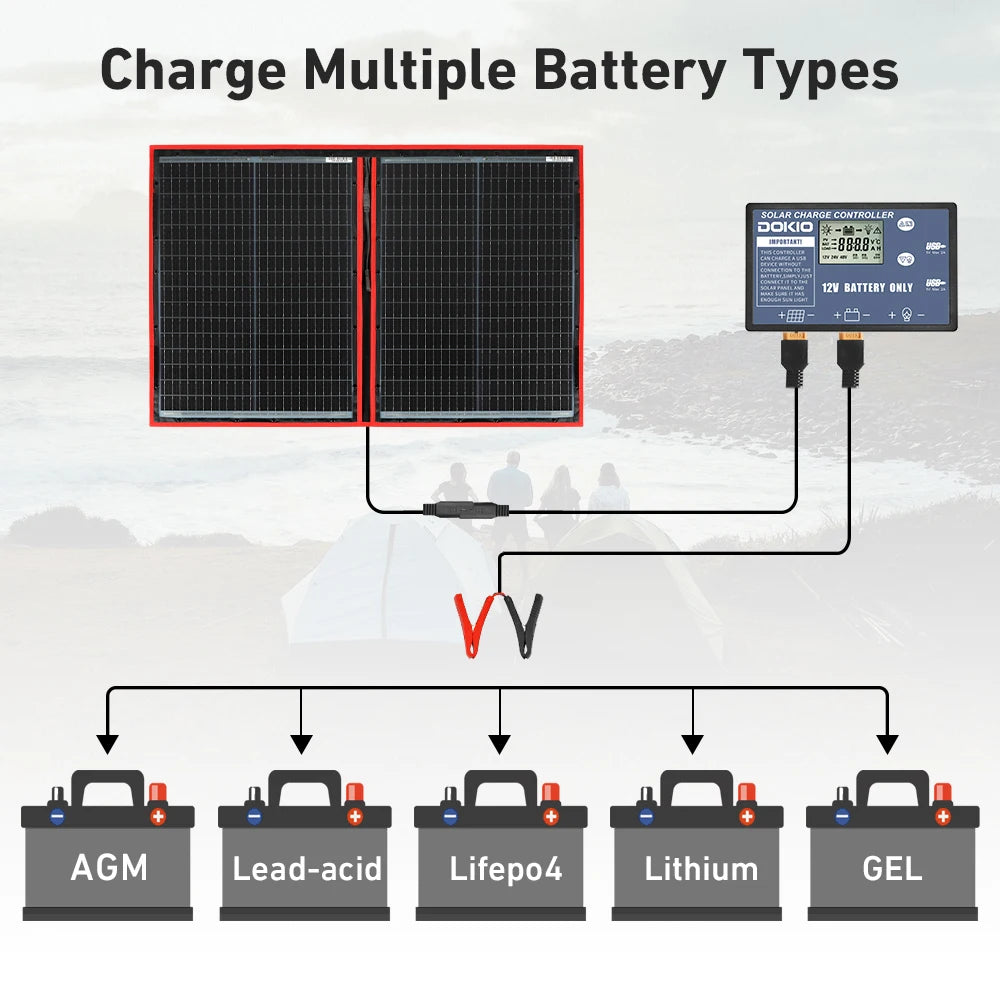

Controller support lead-acid,lithium ions and LiFePO4 battries.
